Adapter kit Ford Barra engine - BMW M57 Gearbox
PMC Motorsport
Reviews
Help others choose right. Be the first to write a review!
Write a reviewPMC Motorsport RACE STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
Ford Barra - BMW M57 GS5-39DZ - 240mm / 9.45" - Sintered disc + Sachs Performance Pressure Plate
The adapter kit enables users connection of Ford Barra engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.
Designed in a CAD environment
Only certified materials were used in the production process
CNC machining
Replaceable cast iron friction surface
The flywheel is balanced prior to shipment
Engine list:
Ford Barra
Gearbox list:
BMW M57 Diesel 5-speed GS5-39DZBMW E39 530D 525D
BMW E46 330D 1434256 ZF 1065401011
Manual
Use the starter from BMW M50 M52 M54 M57
Tighten the flywheel to the same torque as OE.
The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 24mm position
Use 240mm clutch disc with spline dedicate to your gearbox.
Replace the original custom pivot pin with the one from the kit.
Engine:
Ford Barra
Gearbox:
BMW E39 530D M57 ZF GS5-39DZ 5-SPEED DIESEL
, BMW E46 330D M57 ZF GS5-39DZ 5-SPEED DIESEL
, BMW E39 525D M57 ZF GS5-39DZ 5-SPEED DIESEL
CLUTCH SET
Set with Clutch:
Yes
Flywheel Type:
Single Disc
Clutch Set:
Sachs Performance 88 308 200 1243 / 883082.001243
Clutch disc required:
Included
Release bearing required:
Dedicated to your gearbox
Clutch fork required:
dedicated to your gearbox
Starter required:
BMW OE 12417787925
, BMW OE 12412247492
, BMW OE 12412247391
Flexplate / ring gear required:
---
ADDITIONAL INFORMATION
Adapter Kit Type:
Motorsport
Gearbox adapter thickness:
20mm / 0.78"
Replaceable friction surface:
Yes

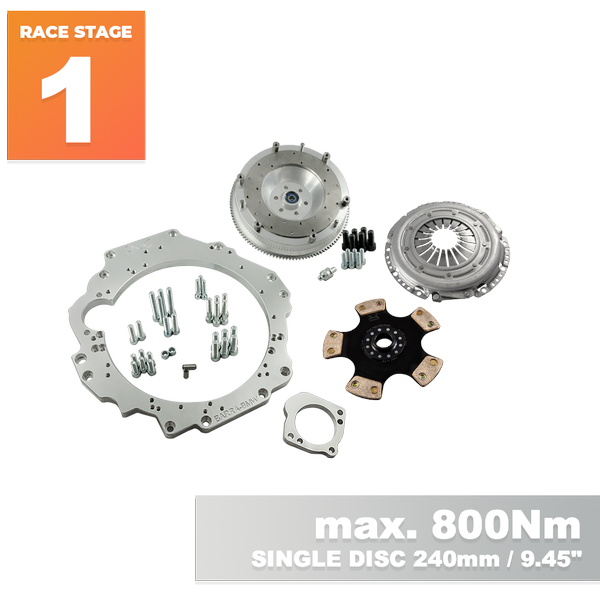

Set includes:

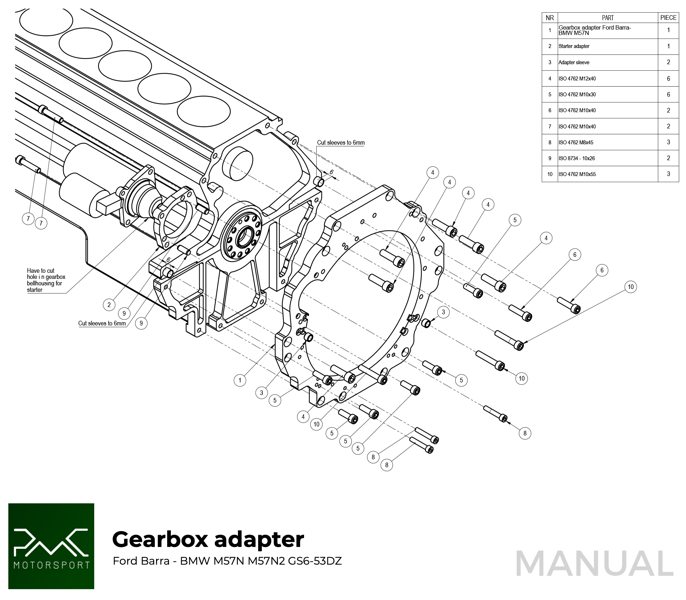

Aluminium gearbox adapter
, Gearbox adapter bolts

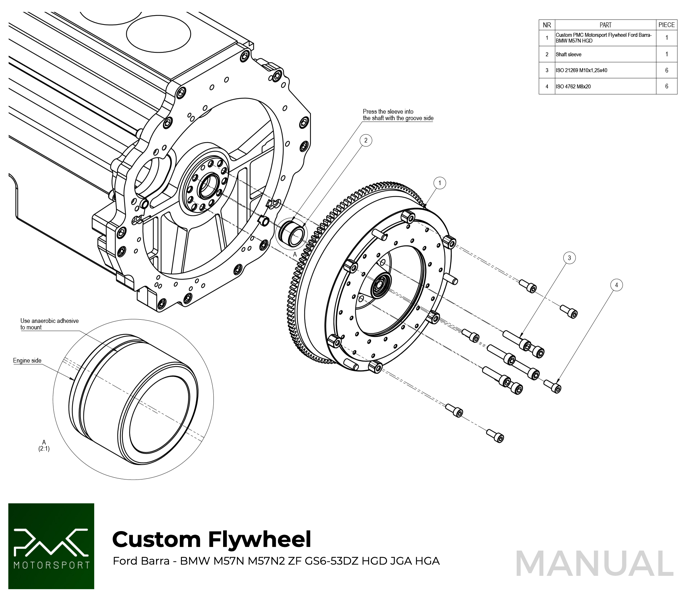

, Custom Flywheel
, Clutch cover - pressure plate bolts kit
, Sachs Performance 88 308 200 1243 / 883082.001243
, Sintered disc 240-28X35-10N
, Crankshaft bolts kit
Product sales codes included:
SACHS 243 (1694)
, K0M50-240-BAR (3646)
, 240-28X35-10N (1055)
, F0BMW-BAR (3431)
----------------
Guides & Info
| Bilmärke | BMW |
| Bilmärke | Ford |
Be first to write a review about this product!
Your review:
To send a review, you must be logged in.
Parts included in kit:
ADAPTER PLATE Ford Barra
BMW M57 M57N M57N2 N54 DCT DKG GS7D36SG N57N N57 ZF 8HP70
