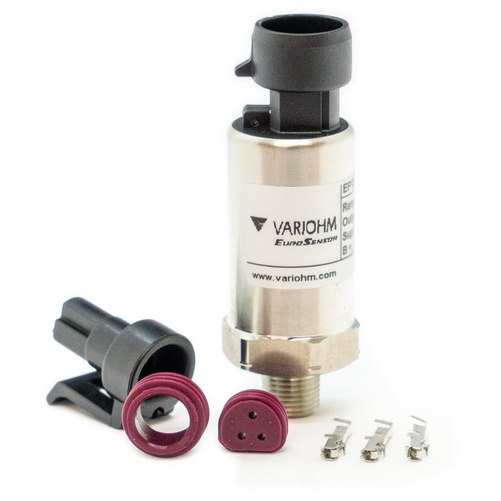

8 Bar MAP Sensor EU (MAP8EU)
Link - Dash & Gauges
8 Bar MAP Sensor EU (MAP8EU)
The 8 Bar MAP Sensor EU (MAP8EU) measures up to 7 Bar absolute pressure, making it suitable for turbo and supercharger applications with boost pressures up to 7 Bar (~101 PSI).
Features:
Connector and pins included
Easy installation: Insert the wire through the connector, crimp the terminal, and pull the wire/terminal back into the connector
Compatible with Link G4/G4+/G4X ECUs, select "Variohm 8 Bar" as the MAP sensor type in PC Link
Calibration:
0 kPa = 0.
5 V
800 kPa = 4.
Reviews
Help others choose right. Be the first to write a review!
Write a review8 Bar MAP Sensor EU (MAP8EU)
The 8 Bar MAP Sensor EU (MAP8EU) measures up to 7 Bar absolute pressure, making it suitable for turbo and supercharger applications with boost pressures up to 7 Bar (~101 PSI).
Features:
- Connector and pins included
- Easy installation: Insert the wire through the connector, crimp the terminal, and pull the wire/terminal back into the connector
- Compatible with Link G4/G4+/G4X ECUs, select "Variohm 8 Bar" as the MAP sensor type in PC Link
- Calibration:
- 0 kPa = 0.5 V
- 800 kPa = 4.5 V
- Pinout:
- PIN A = 0 V
- PIN B = 5 V
- PIN C = Signal
Optimal for motorsport applications requiring extremely high boost pressures up to 7 Bar.
----------------
