ZRP H-profile rods BMW M52,M54
ZRP - Forged & billet engine internals
6 cyl
Reviews
Help others choose right. Be the first to write a review!

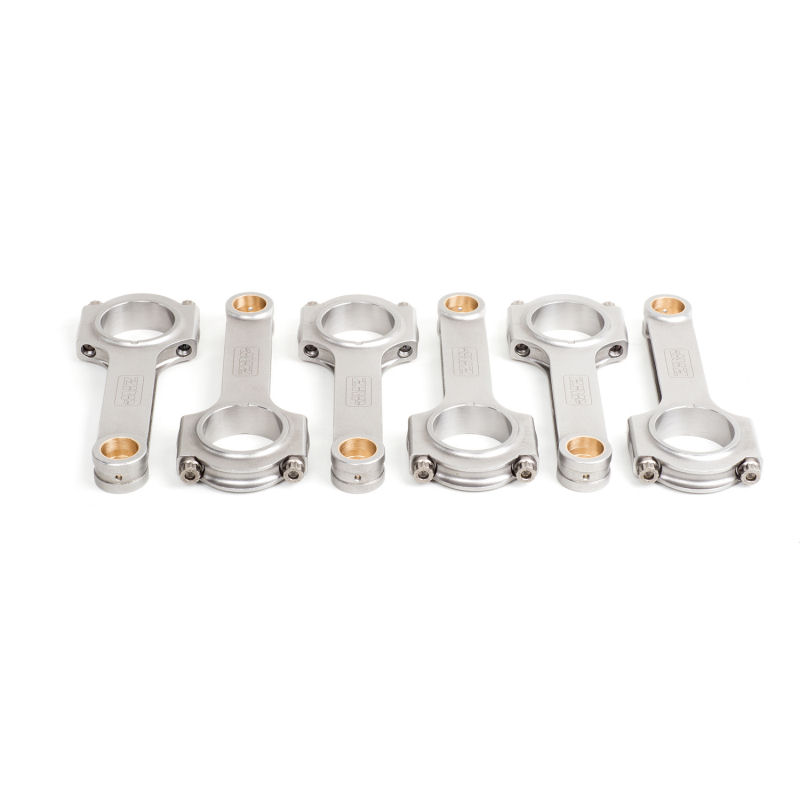

Write a reviewH-Beam ZRP Connecting rods for BMW 2,5L 24V - M54B25
ZRP connecting rods for BMW are delivered in weighted sets with tolerances that only more expensive connecting rods offer.
The ability to also select connecting rod bolts according to the 2,5L 24V - M54B25 engine provides the best performance per cost that we know when it comes to connecting rods.
Specifications
Part number: R-BMW-003H
Length: 145,00
Pin diameter: 22,00
Big-End bore: 48,00
Big-End width: 21,90
Weight (gram): 499
Bolt size: 3/8"
Series: Standard
Shape: H-Beam
Additional Info: - No additional info
ZRP connecting rods can handle more than 200HP per cylinder.
Weighed with a maximum of 1g in weight difference per batch. All connecting rods are CNC machined.
Max tolerance length: 0.001mm
Max tolerance bearing housing: 0.0001mm.
The bushings are made of AMCO18 material known as the absolute best-known material for bushings.
----------------
Guides & Info
| Bilmärke | BMW |
| Engine code | M52 |
| Engine code | M54 |
| Shape | H |
| Length | 145.00 mm |
| Pin Diam | 22.00 mm |
| Big end Diameter | 48.00 mm |
| Big end Width | 21.9 mm |
| Weight | 544 g |
| Set of | 6 Bar |
| Bolt Size | 3/8 " |
| Fastener Grade | ARP2000 |
| Con-Rod Series | Classic |
