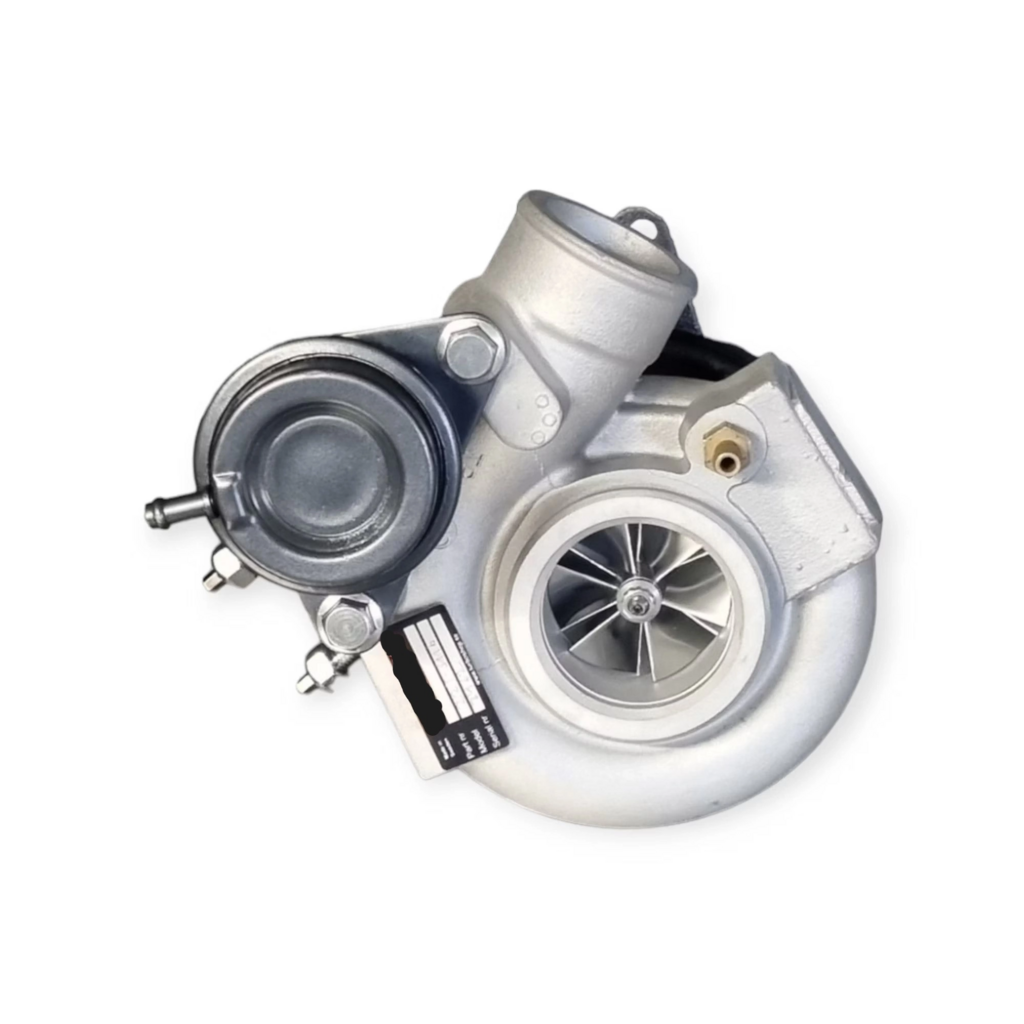

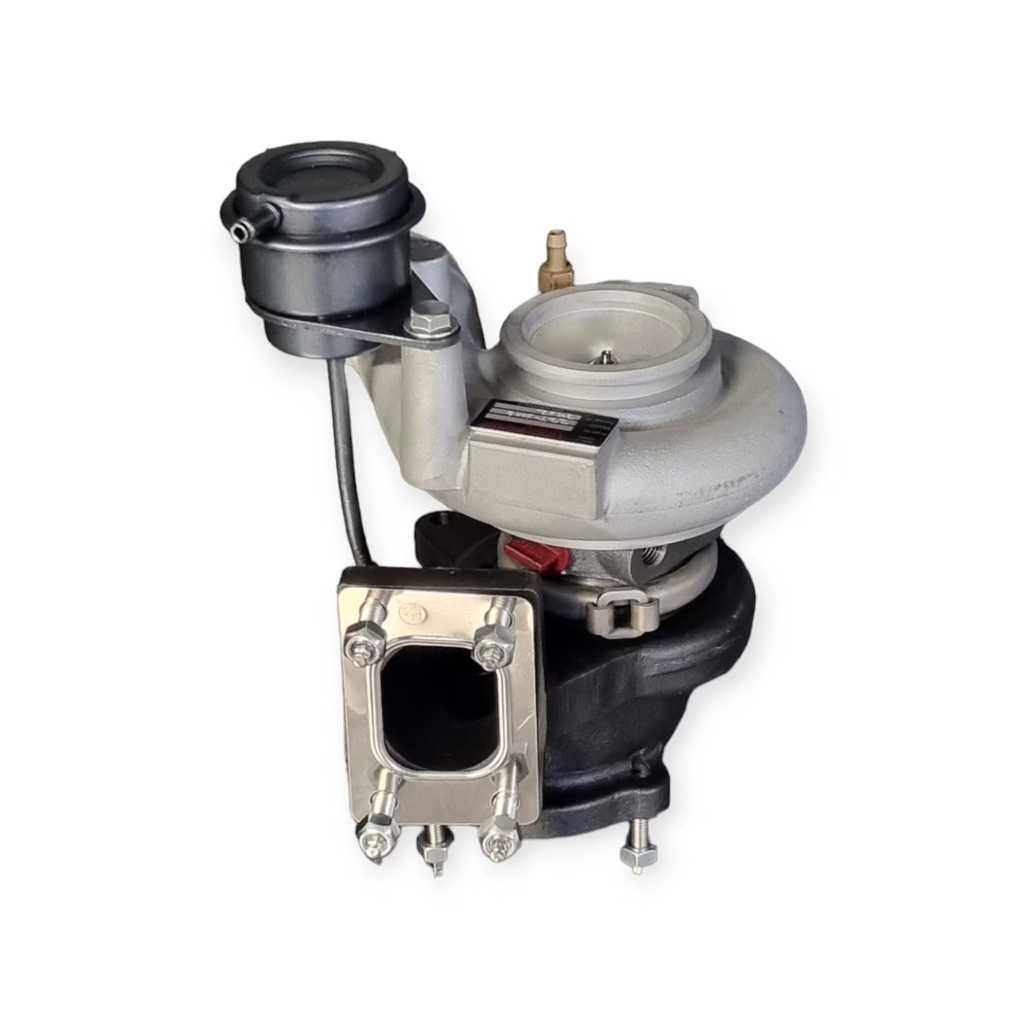

TD04 22T "Billet" Saab 9-5 / 9-3
350-380 HP
Reviews
Help others choose right. Be the first to write a review!
Write a reviewTD04 22T "Billet" Saab 9-5 / 9-3
Finally, a really good bolt-on upgrade turbo for the Saab 9-3 & Saab 9-5 Aero, among others.
This turbo is built only with a short-nose compressor housing for the new "cobra" Kings cobra, which is installed on Aero engines from 2006 onwards for the best airflow.
The turbo is upgraded with a 22T Billet compressor wheel & an aftermarket turbine housing of high quality, with the largest possible 7CM size to reduce the risk of backpressure.
- These are built with a specially designed turbine shaft to reduce backpressure, which is a common issue with these turbine housings.
The Aero turbo 49189-01810 / 1830 / 1850 normally has a 5' turbine housing, and this one can handle significantly more power.
Fits as an upgrade for: 49189-01800 / 49189-01820 but requires modification to the new cobra air intake.
The turbo is built with brand-new factory parts and is also VSR balanced!
Specifications:
- VSR balanced.
- Actuator / Wastegate pre-set at 0.6 bar.
- Bearing section: Reinforced thrust bearing.
- Compressor size 22T Billet: 48.50/61.01mm 6+6 blades, meaning both a larger inducer by 1.5mm and exducer by 3mm than 20T.
- Turbine section: 11-blade 45.6mm inducer 52mm exducer turbine shaft. (Special shaft)
Gasket set + studs + nuts included.
Engine codes this turbo fits bolt-on:
B205R
B235R
When installing new oil + water pipes:
B205E
B205E/B
B205L
B235E
B235E/B
B235L
Note! This is a specially built turbo & requires proper tuning by an experienced Saab specialist.
We strongly recommend using ethanol / E85 with this turbo.
The risk of backpressure in this application is high.
So, monitor backpressure/boost pressure carefully.
| Bilmärke | SAAB |
